Description

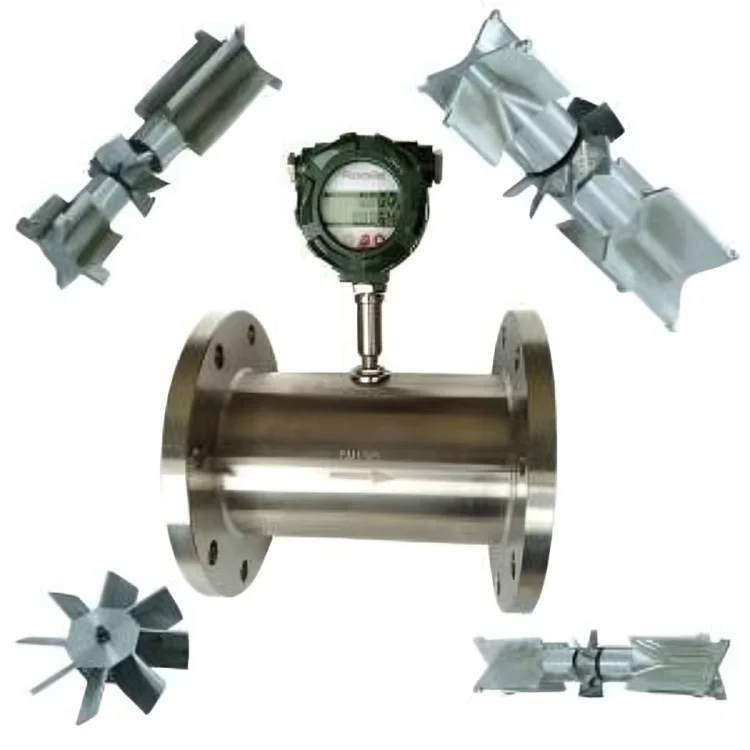

The BROILTECH turbine flow meter comes with an explosion-proof certificate. The rotor of the turbine flow meter undergoes special hardness treatment, and all bushings and shafts are made of hard carbide material, catering to specialized custody transfer applications.
Equipped with two pulse sensors, the turbine flow meter excels in measuring both liquid and gas flow.
Additionally, it offers:
- inline battery operated display ( EX OR ip-65)
- 4 to 20mA output 2wire display(EX)
- 4 to 20mA + RS 485 output diplay( EX)
- 4 to 20mA + HART output diplay( EX)
Technical Specification
| Enclosure | : S.S-304/S.S-316 |
| Rotor | : S.S-304 |
| Shaft | : Hard Stainless Steel-316 with carbon bush |
| Accuracy | : +/- 0.2% or 0.5 % FSD |
| Repeatability | : 0.1% |
| Maximum working pressure | : 60 bar/ 250 bar/ 400 bar |
| Fluid &Ambient temperature | : -20 to 120 Deg. |

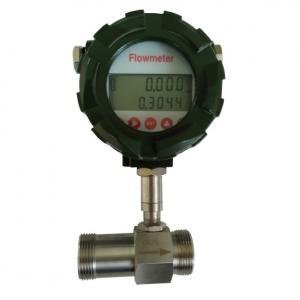

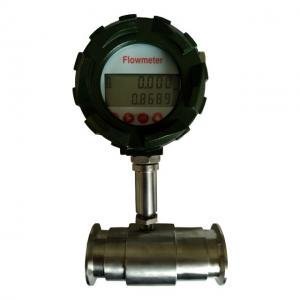

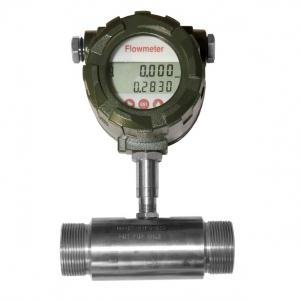

| Connection | : Thread (M/F) or flange |
FLOW RANGE
| MODEL NO | FLANGE LINE SIZE (mm) | SIZE RANGE |
|---|---|---|
| BT-DTFS-004 | 04 | 40~400 L/H |
| BT-DTFS-012 | 12 | 600~6000 L/H |
| BT-DTFS-025 | 25 | 1000~10000 L/H |
| BT-DTFS-040 | 40 | 2000~20000 L/H |
| BT-DTFS-050 | 50 | 4000~40000 L/H |
| BT-DTFS-080 | 80 | 10000~100000 L/H |
| BT-DTFS-100 | 100 | 20000~200000 L/H |
| BT-DTFS-150 | 150 | 30000~300000 L/H |
| BT-DTFS-200 | 200 | 80000~800000 L/H |
Product Features
BROILTECH turbine flow meter available with explosionproof certificate, Turbine flow meter rotor made with special hardness treatment all bush and shaft hard carbide material available for special custody transfer application with 2 pulse sensor
Product Range
Turbine flow meter use in monitoring flow rate, batching, controlling of clean liquid flows in chemical, petroleum, pharmaceutical, hydrocarbon, food and beverage and water industries.
